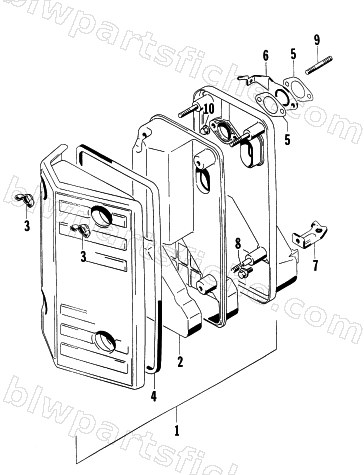

1997 Arctic Cat 4000GD — AIR CLEANER ASSEMBLY
1997 4000GD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-065 | AIR CLEANER ASSY | 1 | $124.95 | |
| 3 | 0693-542 | NUT,6MM | 1 | $3.16 | |
| 5 | 0691-883 | GASKET, AIR CLEANER | 1 | $7.95 | |
| 6 | 0693-161 | INSULATION,AIR CLEANER | 1 | $15.95 | |
| 7 | 0693-469 | BRACKET, AIR CLEANER | 1 | $7.95 | |
| 8 | 0693-386 | SCREW,M6X12 | 1 | $3.69 | |
| 9 | 3004-605 | STUD BOLT,M6X80 | 1 | $2.89 | |
| 10 | 3002-863 | NUT,HEX M6 W/WASHER FACE | 1 | $1.95 |
