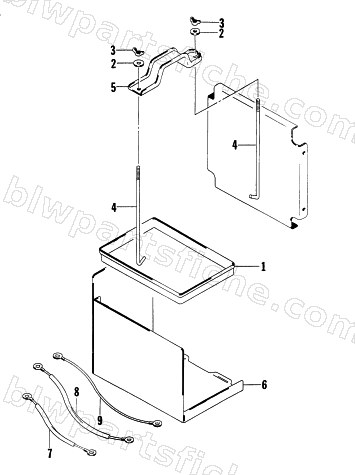

1997 Arctic Cat 4000GD — BATTERY ASSEMBLY
1997 4000GD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-491 | TRAY, BATTERY | 1 | $17.95 | |
| 2 | 0693-492 | WASHER (5.5X16X1.2),5MM | 1 | $2.69 | |
| 3 | 3004-628 | NUT,5MM | 1 | $4.29 | |
| 4 | 3004-629 | BOLT,BATTERY HOLDER | 1 | $7.95 | |
| 5 | 0693-493 | BAND, BATTERY | 1 | $31.95 | |
| 6 | 0693-495 | TRAY, BATTERY | 1 | $257.95 |
