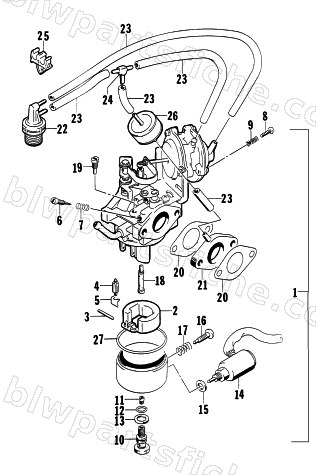

1997 Arctic Cat 4000GD — CARBURETOR ASSEMBLY
1997 4000GD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-462 | CARBURETOR ASSY | 1 | $565.95 | |
| 2 | 0691-096 | FLOAT | 1 | $54.95 | |
| 3 | 0691-098 | PIN, FLOAT | 1 | $5.95 | |
| 5 | 0691-105 | CLIP | 1 | $12.95 | |
| 6 | 0691-102 | ADJUSTER | 1 | $13.73 | |
| 7 | 0691-272 | SPRING, THROTTLE SCREW | 1 | $12.35 | |
| 8 | 0693-439 | SCREW,M3X10 | 1 | $2.29 | |
| 9 | 6505-289 | SPRING | 1 | $4.54 | |
| 13 | 0693-151 | PACKING | 1 | $7.95 | |
| 14 | 1691-161 | SOLENOID | 1 | $189.95 | |
| 15 | 3004-602 | WASHER | 1 | $4.29 | |
| 16 | 3004-603 | SCREW | 1 | $8.21 | |
| 17 | 3004-604 | SPRING | 1 | $6.95 | |
| 18 | 0693-047 | NOZZLE | 1 | $49.95 | |
| 19 | 0691-051 | ET, PILOT (#52.5) | 1 | $16.95 | |
| 20 | 0693-520 | GASKET, CARBURETOR | 1 | $10.95 | |
| 21 | 0693-064 | INSULATOR, CARBURETOR | 1 | $9.95 | |
| 22 | 0693-464 | VALVE ASSY, BVS | 1 | $109.95 | |
| 24 | 0693-466 | JOINT, 3-WAY,M4 | 1 | $4.39 | |
| 26 | 0693-468 | VALVE, VACUUM TRANSMITTING | 1 | $59.95 | |
| 27 | 6505-286 | GASKET FLOAT CHAMBER | 1 | $4.54 |
