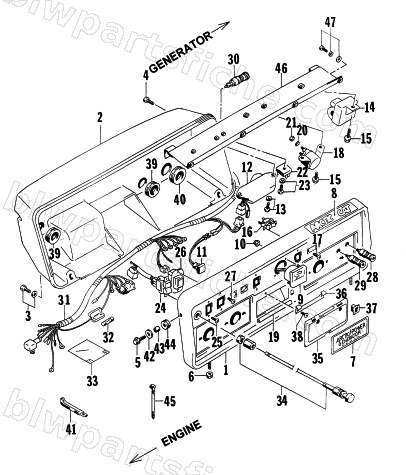

CONTROL BOX ASSEMBLY
1997 4000GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-504 | PANEL, CONTROL | 1 | $391.95 | |
| 2 | 0693-075 | PANEL, REAR | 1 | $144.95 | |
| 3 | 3007-392 | BOLT | 1 | $3.95 | |
| 4 | 0693-505 | SCREW,M6X16 | 1 | $1.95 | |
| 6 | 3007-373 | NUT | 1 | $3.16 | |
| 7 | 0693-080 | DECAL, ARCTIC POWER | 1 | $10.95 | |
| 8 | 0693-050 | DECAL, ARCTIC CAT | 1 | $6.95 | |
| 9 | 0691-929 | METER, VOLTAGE | 1 | $164.95 | |
| 10 | 3004-633 | NUT,3MM | 1 | $2.29 | |
| 11 | 0691-324 | LAMP ASSY, OIL LEVEL | 1 | $54.95 | |
| 12 | 0693-193 | UNIT,FUEL/OIL-CONTROL | 1 | $249.95 | |
| 13 | 3004-634 | SCREW,M5X16 | 1 | $3.95 | |
| 14 | 0693-194 | UNIT,SLOW DOWN | 1 | $259.95 | |
| 15 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 16 | 0693-506 | SWITCH, SLOWDOWN | 1 | $97.95 | |
| 17 | 3004-635 | SCREW,M3X10 | 1 | $2.29 | |
| 18 | 0693-076 | RELAY, STARTER MOTOR | 1 | $137.95 | |
| 20 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 21 | 3007-703 | NUT,6MM | 1 | $3.85 | |
| 22 | 0693-196 | RECTIFIER,ASSY | 1 | $110.95 | |
| 23 | 3005-572 | SCREW,M4X20 | 1 | $2.95 | |
| 24 | 0693-197 | SWITCH,ASSY-ENG | 1 | $194.95 | |
| 26 | 0693-198 | SWITCH,ASSY-ENG STARTER | 1 | $91.95 | |
| 27 | 3007-690 | SCREW,M4X6 | 1 | $2.47 | |
| 28 | 0691-684 | TERMINAL (+) | 1 | $27.95 | |
| 29 | 0691-211 | TERMINAL | 1 | $34.95 | |
| 30 | 0691-726 | TERMINAL | 1 | $29.95 | |
| 31 | 0693-507 | HARNESS, CONTROL | 1 | $527.95 | |
| 32 | 0693-077 | FUSE, 10A | 1 | $10.95 | |
| 33 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 34 | 0693-200 | CABLE,ASSY-CHOKE | 1 | $24.95 | |
| 35 | 0693-508 | HINGE, HZ CHANGE | 1 | $19.95 | |
| 36 | 0693-509 | HOLDER, UPPER HINGE HZ | 1 | $10.95 | |
| 37 | 0693-203 | LATCH,HINGE | 1 | $4.95 | |
| 38 | 3007-695 | SCREW,5X12 | 1 | $2.47 | |
| 39 | 0693-510 | GROMMET,M27 | 1 | $3.99 | |
| 40 | 0693-511 | GROMMET | 1 | $5.95 | |
| 41 | 0693-512 | CLAMP,M8 | 1 | $4.95 | |
| 42 | 3004-639 | WASHER 65X20X1.2 | 1 | $2.49 | |
| 43 | 0691-373 | SPACER, M6.1X9X7.5 | 1 | $2.19 | |
| 44 | 0691-223 | CUSHION | 1 | $4.95 | |
| 45 | 3003-787 | CABLE TIE | 1 | $4.95 | |
| 47 | 3004-640 | SCREW,M5X10 | 1 | $1.95 |
