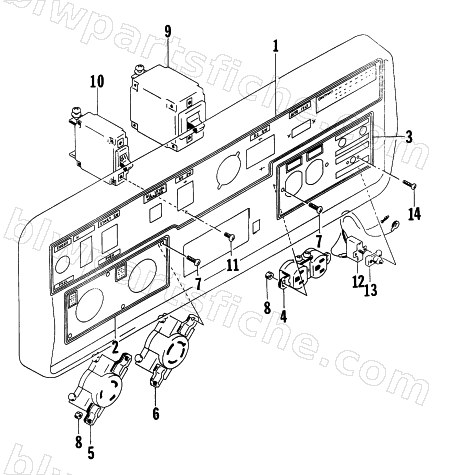

1997 Arctic Cat 4000GD — CONTROL PANEL ASSEMBLY
1997 4000GD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0691-208 | RECEPTACLE | 1 | $67.95 | |
| 5 | 0691-209 | RECEPTACLE | 1 | $129.95 | |
| 6 | 0691-210 | RECEPTACLE | 1 | $125.95 | |
| 7 | 3004-566 | SCREW,M4X10 | 1 | $2.19 | |
| 8 | 0693-342 | NUT,4MM | 1 | $4.29 | |
| 9 | 0691-207 | CIRCUIT BREAKER (15A) | 1 | $191.95 | |
| 10 | 0691-206 | CIRCUIT BREAKER (30A) | 1 | $191.95 | |
| 11 | 3007-690 | SCREW,M4X6 | 1 | $2.47 | |
| 12 | 0691-566 | PROTECTOR, CIRCUIT-DC | 1 | $67.95 | |
| 13 | 0691-358 | CAP, PROTECTOR | 1 | $18.95 | |
| 14 | 3004-635 | SCREW,M3X10 | 1 | $2.29 |
