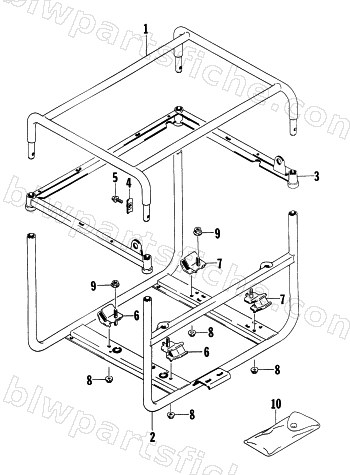

FRAME ASSEMBLY
1997 4000GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-071 | FRAME, UPPER | 1 | $191.95 | |
| 2 | 0693-499 | FRAME, LOWER | 1 | $362.95 | |
| 3 | 0693-073 | FRAME, MIDDLE | 1 | $127.95 | |
| 4 | 0691-178 | WASHER, FRAME | 1 | $6.95 | |
| 5 | 3007-382 | BOLT | 1 | $3.16 | |
| 6 | 0691-069 | MOUNT, ENGINE (ENG SIDE) | 1 | $110.95 | |
| 7 | 0691-070 | MOUNT ENGINE (GEN SIDE)) | 1 | $99.95 | |
| 8 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 9 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 10 | 0691-719 | TOOL SET | 1 | $22.01 |
