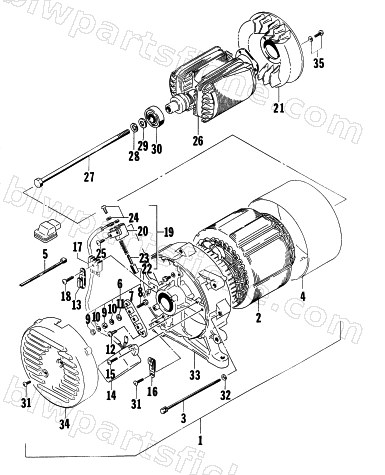

1997 Arctic Cat 4000GD — GENERATOR ASSEMBLY
1997 4000GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-518 | GENERATOR ASSY | 1 | $1,931.95 | |
| 3 | 0691-195 | BOLT, STATOR 6X160 | 1 | $21.95 | |
| 4 | 0691-190 | COVER, STATOR CORE | 1 | $27.95 | |
| 5 | 0693-276 | CLAMP,M25 | 1 | $5.95 | |
| 6 | 0691-193 | TERMINAL ASSY, GENERATOR | 1 | $43.95 | |
| 7 | 0691-194 | HOLDER, TERMINAL | 1 | $31.95 | |
| 8 | 3004-647 | BOLT | 1 | $1.99 | |
| 9 | 3007-572 | NUT,5MM | 1 | $2.47 | |
| 10 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 11 | 3004-649 | WASHER,5MM | 1 | $4.29 | |
| 12 | 0691-014 | SCREW, L:16H,5MM | 1 | $3.69 | |
| 13 | 3008-357 | CLAMP,M6 | 1 | $3.09 | |
| 14 | 0691-196 | REGULATOR ASSY, VOLTAGE | 1 | $556.95 | |
| 17 | 0693-218 | RECTIFER,GENERATOR | 1 | $105.95 | |
| 18 | 0693-248 | SCREW, L:20,5MM | 1 | $2.39 | |
| 20 | 0691-200 | HOLDER, BRUSH | 1 | $19.95 | |
| 21 | 0691-203 | FAN, ROTOR | 1 | $109.95 | |
| 22 | 0691-199 | BRUSH, SPRING | 1 | $14.95 | |
| 23 | 0691-201 | TUBE, BRUSH | 1 | $2.39 | |
| 24 | 0693-351 | SCREW,M4X8 | 1 | $3.69 | |
| 26 | 0693-451 | ROTOR, GENERATOR | 1 | $1,150.95 | |
| 27 | 0691-002 | BOLT, L:8 | 1 | $16.95 | |
| 28 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 29 | 0691-020 | WASHER, 10.5X20X3.2 | 1 | $1.49 | |
| 30 | 0691-798 | BEARING,BALL(20X47X14) | 1 | $56.95 | |
| 31 | 0691-013 | SCREW, L:10,5MM | 1 | $2.09 | |
| 32 | 3007-502 | WASHER,OIL SEPARATOR PLATE | 1 | $2.75 | |
| 33 | 0691-191 | HOUSING ,RR | 1 | $197.95 | |
| 34 | 0693-272 | COVER, REAR HOUSING | 1 | $118.95 |
