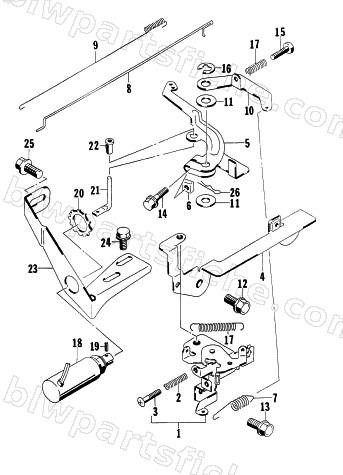

THROTTLE CONTROL ASSEMBLY
1997 4000GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-474 | HOOK ASSY, GOVERNOR SPRING | 1 | $49.95 | |
| 2 | 0691-901 | SPRING,M7 | 1 | $3.44 | |
| 3 | 3007-691 | SCREW,M5X25 | 1 | $2.75 | |
| 4 | 0693-475 | BRACKET, THROTTLE CONTROL | 1 | $27.95 | |
| 5 | 0693-171 | LEVER,THROTTLE CONTROL | 1 | $27.95 | |
| 6 | 0691-017 | NUT,6MM | 1 | $1.78 | |
| 7 | 0693-172 | SPRING, THOTTLE CONTROL | 1 | $10.95 | |
| 8 | 0691-154 | ROD, CARBURETOR | 1 | $5.95 | |
| 9 | 0691-155 | SPRING, CARBURETOR | 1 | $20.95 | |
| 10 | 0693-173 | LEVER,GOV SPRING ADJ | 1 | $8.95 | |
| 11 | 3423-204 | WASHER | 1 | $1.95 | |
| 13 | 3007-457 | BOLT | 1 | $3.16 | |
| 14 | 3007-380 | BOLT | 1 | $3.16 | |
| 15 | 3002-279 | SCREW,M5-8X20 | 1 | $2.95 | |
| 16 | 3423-368 | E RING,FASTENER | 1 | $3.71 | |
| 17 | 3004-615 | SPRING,M7 | 1 | $6.95 | |
| 18 | 0693-478 | SOLENOID, SLOWDOWN | 1 | $207.95 | |
| 19 | 0693-479 | PIN,DOWEL,3MM | 1 | $4.29 | |
| 20 | 0693-480 | LOCK WASHER,19MM | 1 | $2.39 | |
| 21 | 0693-481 | ROD, SLOWDOWN SOLENOID | 1 | $14.95 | |
| 22 | 0693-482 | BUSH, SOLENOID ROD,M4 | 1 | $5.95 | |
| 23 | 0693-483 | BRACKET, SOLENOID | 1 | $17.95 | |
| 24 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 25 | 0693-484 | BOLT (8X20.5) | 1 | $3.99 | |
| 26 | 0691-035 | SNAP,M8 | 1 | $2.19 |
