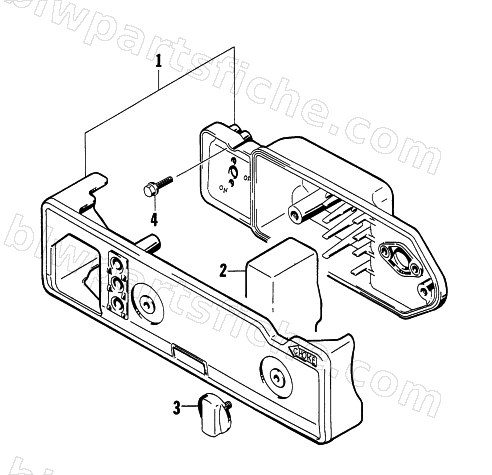

1997 Arctic Cat 750G — AIR CLEANER ASSEMBLY
1997 750G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-627 | CLEANER ASSY, AIR | 1 | $132.95 | |
| 2 | 0691-578 | FILTER, AIR CLEANER | 1 | $27.95 | |
| 3 | 0691-628 | BOLT | 1 | $9.95 | |
| 4 | 0691-670 | BOLT L:25,6MM | 1 | $7.95 | |
| 4 | 0693-242 | BOLT, M6X23 | 1 | $2.95 |
