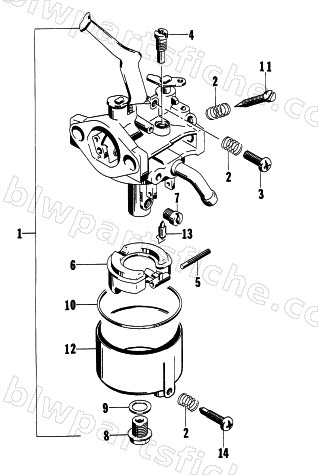

1997 Arctic Cat 750G — CARBURETOR ASSEMBLY
1997 750G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-400 | CARBURETOR ASSY | 1 | $254.95 | |
| 2 | 6505-291 | SPRING | 1 | $20.63 | |
| 4 | 0691-620 | JET, PILOT (32.5) | 1 | $17.95 | |
| 5 | 0691-098 | PIN, FLOAT | 1 | $5.95 | |
| 6 | 0691-621 | FLOAT | 1 | $39.95 | |
| 7 | 0691-622 | JET, MAIN(65) | 1 | $15.95 | |
| 8 | 0691-623 | BOLT, DRAIN | 1 | $17.95 | |
| 9 | 0691-624 | GASKET | 1 | $2.75 | |
| 10 | 0691-625 | PACKING | 1 | $13.95 | |
| 11 | 0691-102 | ADJUSTER | 1 | $13.73 | |
| 13 | 0691-576 | VALVE ASSY, NEEDLE | 1 | $41.95 | |
| 14 | 0691-107 | SCREW, DRAIN | 1 | $7.95 |
