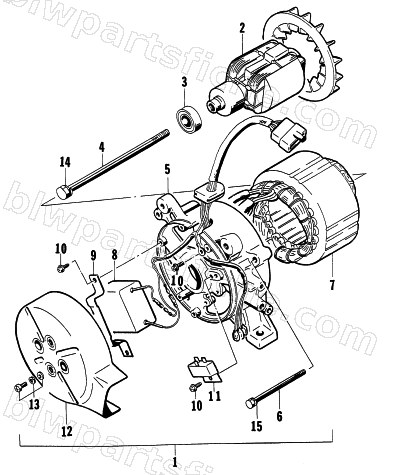

GENERATOR ASSEMBLY
1997 750G
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0691-691 | ROTOR | 1 | $447.95 | |
| 3 | 0691-692 | BEARING,BALL(4.7498 DIA) | 1 | $41.95 | |
| 4 | 0691-933 | BOLT, ROTOR,M8X14 | 1 | $27.95 | |
| 5 | 0691-694 | BRACKET, REAR | 1 | $119.95 | |
| 7 | 0691-696 | STATOR (120V, 60HZ) | 1 | $779.95 | |
| 8 | 0691-697 | CAPACITOR | 1 | $97.95 | |
| 10 | 0691-003 | BOLT,5MM | 1 | $1.29 | |
| 11 | 0691-700 | DIODE | 1 | $77.95 | |
| 12 | 0691-701 | COVER, REAR | 1 | $74.95 | |
| 13 | 0693-378 | SCREW | 1 | $2.29 | |
| 14 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 15 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 |
