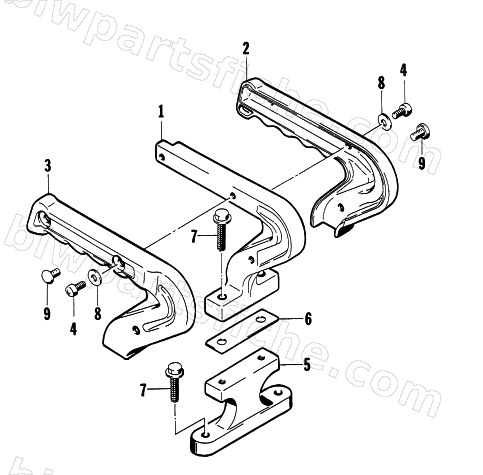

1997 Arctic Cat 750G — GRIP ASSEMBLY
1997 750G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-703 | GRIP | 1 | $44.95 | |
| 2 | 0691-704 | COVER, RH | 1 | $12.95 | |
| 3 | 0691-705 | COVER, LH | 1 | $14.20 | |
| 4 | 3004-594 | SCREW,M5X10 | 1 | $1.59 | |
| 5 | 0691-707 | BASE, GRIP | 1 | $27.95 | |
| 6 | 0691-977 | GASKET, GRIP | 1 | $7.95 | |
| 7 | 0693-416 | BOLT,M6X25 | 1 | $2.06 |
