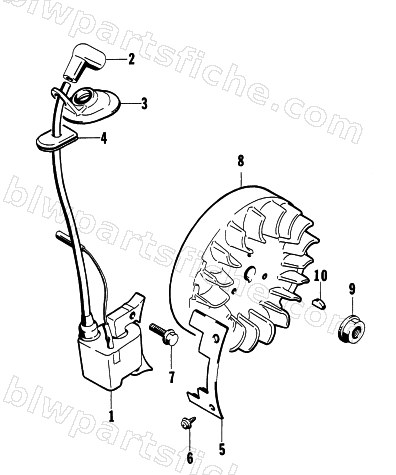

1997 Arctic Cat 750G — MAGNETO ASSEMBLY
1997 750G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-661 | STATOR | 1 | $174.95 | |
| 2 | 0691-662 | CAP,SPARK PLUG | 1 | $15.58 | |
| 5 | 0691-665 | SEAL, COIL | 1 | $8.95 | |
| 7 | 0693-330 | BOLT,6MM | 1 | $3.89 | |
| 8 | 0693-411 | ROTOR | 1 | $367.95 | |
| 9 | 3007-556 | NUT | 1 | $3.95 | |
| 10 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
