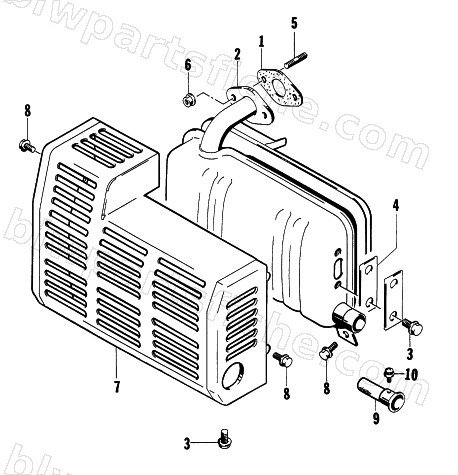

1997 Arctic Cat 750G — MUFFLER ASSEMBLY
1997 750G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-724 | GASKET, EXHAUST | 1 | $12.35 | |
| 2 | 0693-401 | MUFFLER | 1 | $261.95 | |
| 3 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 5 | 3004-850 | BOLT,STUD-M6X16 | 1 | $2.75 | |
| 6 | 3007-373 | NUT | 1 | $3.16 | |
| 7 | 0691-634 | COVER, MUFFLER FRONT | 1 | $97.95 | |
| 8 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 9 | 0691-636 | SCREEN, SPARK ARRESTER | 1 | $51.95 | |
| 10 | 3004-606 | SCREW,M4X8 | 1 | $4.29 |
