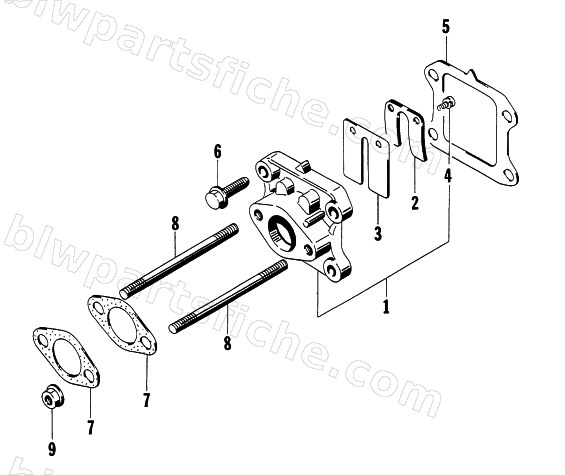

1997 Arctic Cat 750G — REED VALVE ASSEMBLY
1997 750G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-612 | VALVE ASSY, REED | 1 | $84.95 | |
| 3 | 0691-614 | VALVE, REED | 1 | $13.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 0691-965 | GASKET, REED VALVE | 1 | $7.95 | |
| 6 | 0691-004 | BOLT, 6X20 | 1 | $16.95 | |
| 7 | 0691-966 | GASKET, AIR CLEANER | 1 | $7.95 | |
| 9 | 3007-373 | NUT | 1 | $3.16 |
