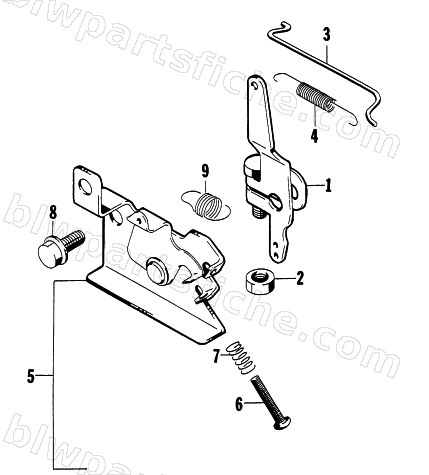

1997 Arctic Cat 750G — THROTTLE CONTROL ASSEMBLY
1997 750G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-654 | LEVER, THROTTLE CONTROL | 1 | $7.95 | |
| 2 | 3007-703 | NUT,6MM | 1 | $3.85 | |
| 3 | 0691-656 | ROD, CARBURETOR | 1 | $5.95 | |
| 4 | 0693-410 | SPRING, CARBURETOR ROD | 1 | $7.72 | |
| 5 | 0691-658 | LEVER ASSY, GOV SPRING | 1 | $47.95 | |
| 6 | 3004-535 | SCREW, 4X20 | 1 | $1.95 | |
| 7 | 0693-369 | SPRING, GOV ADJUST SCREW,COMPRESSION,M5 | 1 | $2.39 | |
| 8 | 0693-241 | BOLT, M6X12 | 1 | $3.16 |
