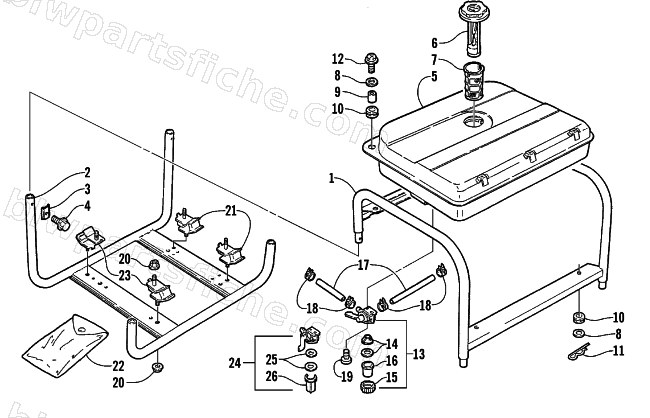

1999 Arctic Cat AC2500GD — FRAME ASSEMBLY
1999 AC2500GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-756 | FRAME, UPPER (BLACK) | 1 | $446.95 | |
| 1 | 0693-720 | FRAME,UPPER | 1 | $454.95 | |
| 2 | 0693-757 | FRAME, LOWER (BLACK) | 1 | $321.95 | |
| 2 | 0693-721 | FRAME,LOWER | 1 | $339.95 | |
| 2 | 0693-726 | FRAME,LOWER | 1 | $419.95 | |
| 3 | 0691-178 | WASHER, FRAME | 1 | $6.95 | |
| 4 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 5 | 0693-758 | TANK, FUEL (BLACK) | 1 | $314.95 | |
| 6 | 0693-041 | CAP, FUEL | 1 | $91.95 | |
| 7 | 0691-187 | FILTER ASSY, FUEL TANK | 1 | $29.95 | |
| 8 | 3004-551 | WASHER,6.5X20X1.2 | 1 | $1.95 | |
| 9 | 0691-373 | SPACER, M6.1X9X7.5 | 1 | $2.19 | |
| 10 | 0691-223 | CUSHION | 1 | $4.95 | |
| 12 | 3007-392 | BOLT | 1 | $3.95 | |
| 15 | 0693-547 | CAP SET, FUEL | 1 | $14.95 | |
| 17 | 3008-200 | HOSE, VACUUM,M5.3X10.5X600 | 1 | $26.95 | |
| 18 | 0693-548 | CLIP,M9 | 1 | $3.39 | |
| 19 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 20 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 21 | 0693-280 | MOUNT, ENGINE | 1 | $61.95 | |
| 22 | 0691-719 | TOOL SET | 1 | $22.01 | |
| 23 | 0693-229 | MOUNT ASSY, ENGINE | 1 | $51.95 | |
| 25 | 0693-708 | FILTER SET | 1 | $17.95 | |
| 26 | 0693-707 | CUP | 1 | $18.95 |
