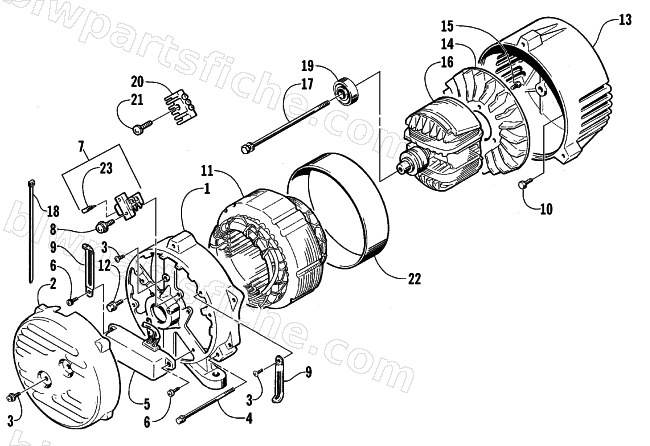

1999 Arctic Cat AC2500GD — GENERATOR ASSEMBLY
1999 AC2500GD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-769 | HOUSING, REAR | 1 | $367.95 | |
| 2 | 0693-272 | COVER, REAR HOUSING | 1 | $118.95 | |
| 5 | 0691-196 | REGULATOR ASSY, VOLTAGE | 1 | $556.95 | |
| 6 | 0693-248 | SCREW, L:20,5MM | 1 | $2.39 | |
| 8 | 0691-014 | SCREW, L:16H,5MM | 1 | $3.69 | |
| 9 | 0693-274 | CLAMP,M6 | 1 | $2.69 | |
| 10 | 0693-245 | BOLT, 8X25 | 1 | $2.89 | |
| 12 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 13 | 0693-270 | HOUSING, FRONT | 1 | $234.95 | |
| 14 | 0691-203 | FAN, ROTOR | 1 | $109.95 | |
| 15 | 0693-379 | SCREW,M5X10 | 1 | $2.09 | |
| 16 | 0693-770 | ROTOR | 1 | $684.95 | |
| 17 | 0693-299 | BOLT, 8X195 | 1 | $16.96 | |
| 18 | 0693-276 | CLAMP,M25 | 1 | $5.95 | |
| 19 | 0691-768 | BEARING,BALL(17X40X12) | 1 | $32.95 | |
| 20 | 0691-347 | DIODE, STANLEY | 1 | $61.95 | |
| 23 | 0691-199 | BRUSH, SPRING | 1 | $14.95 |
