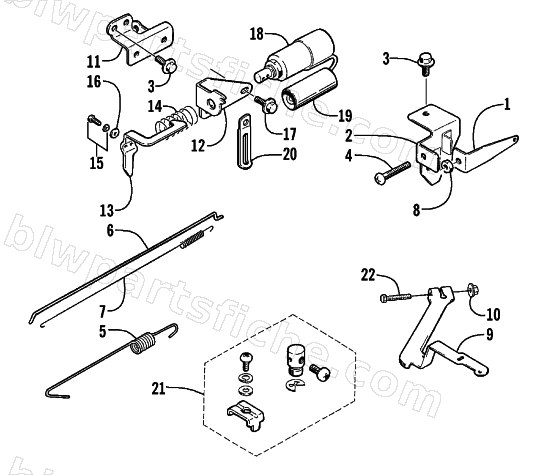

THROTTLE CONTROL ASSEMBLY
1999 AC2500GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-087 | HOOK | 1 | $10.06 | |
| 2 | 0693-088 | BRACKET | 1 | $15.11 | |
| 3 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 4 | 0693-247 | SCREW, M6X50 | 1 | $2.39 | |
| 5 | 1691-156 | SPRING,THROTTLE CONTROL | 1 | $11.95 | |
| 6 | 0691-916 | ROD, CARBURETOR | 1 | $5.95 | |
| 7 | 0691-917 | SPRING, CARBURETOR | 1 | $8.95 | |
| 8 | 0693-250 | NUT,6MM | 1 | $2.79 | |
| 9 | 0693-259 | LEVER, THROTTLE CONTROL | 1 | $36.95 | |
| 10 | 0691-017 | NUT,6MM | 1 | $1.78 | |
| 11 | 0693-090 | BRACKET,AUTO IDLE | 1 | $21.79 | |
| 12 | 0693-091 | HOLDER,SELENIOD-AUTO IDLER | 1 | $13.95 | |
| 13 | 0693-092 | HOOK,AUTO IDLER | 1 | $19.25 | |
| 14 | 0693-093 | SPRING RETURN,AUTO IDLER | 1 | $7.99 | |
| 15 | 0693-387 | SCREW, AUTO IDLE-M3X12 | 1 | $3.69 | |
| 16 | 3004-548 | WASHER,3MM | 1 | $0.85 | |
| 17 | 0693-318 | BOLT,M6X10 | 1 | $4.29 | |
| 18 | 0693-094 | SOLENOID,AUTO IDLER | 1 | $149.95 | |
| 19 | 0693-122 | TUBE,SOLINOID LEAD | 1 | $5.95 | |
| 20 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 21 | 0691-553 | HOOK SET, CABLE | 1 | $39.95 | |
| 22 | 0693-416 | BOLT,M6X25 | 1 | $2.06 |
