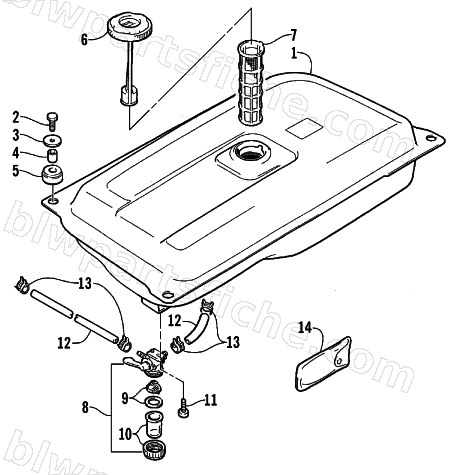

1999 Arctic Cat AC7500GD2E — FUEL TANK ASSEMBLY
1999 AC7500GD2E
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-500 | TANK, FUEL | 1 | $244.95 | |
| 2 | 3007-380 | BOLT | 1 | $3.16 | |
| 3 | 3004-474 | WASHER | 1 | $1.95 | |
| 4 | 0693-558 | SPACER, M8.5X12X12.5 | 1 | $5.95 | |
| 5 | 0693-502 | CUSHION | 1 | $11.86 | |
| 6 | 0693-074 | CAP, GAS | 1 | $69.95 | |
| 7 | 0693-501 | FILTER, FUEL TANK | 1 | $47.95 | |
| 10 | 0693-547 | CAP SET, FUEL | 1 | $14.95 | |
| 11 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 12 | 3008-200 | HOSE, VACUUM,M5.3X10.5X600 | 1 | $26.95 | |
| 14 | 0691-719 | TOOL SET | 1 | $22.01 |
