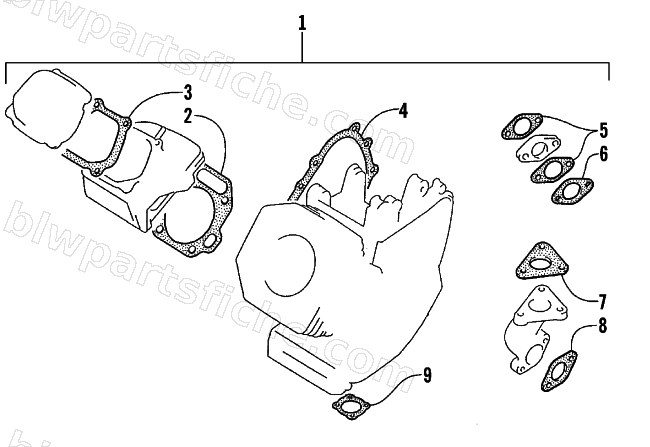

1999 Arctic Cat AC7500GD2E — GASKET SET (OPTIONAL)
1999 AC7500GD2E
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-685 | GASKET SET | 1 | $97.95 | |
| 2 | 0693-567 | GASKET, CYLINDER HEAD | 1 | $27.95 | |
| 3 | 0691-056 | GASKET, CYLINDER HEAD COVER | 1 | $15.95 | |
| 4 | 0693-571 | GASKET, CRANKCASE | 1 | $31.95 | |
| 5 | 0693-584 | GASKET, CARB/ID:31 | 1 | $5.95 | |
| 6 | 0693-589 | GASKET, AIR CLEANER | 1 | $7.95 | |
| 7 | 0691-951 | GASKET, MUFFLER | 1 | $16.49 | |
| 8 | 0693-590 | GASKET, EXHAUST | 1 | $14.95 | |
| 9 | 1691-153 | GASKET, OIL LEVEL | 1 | $19.25 |
