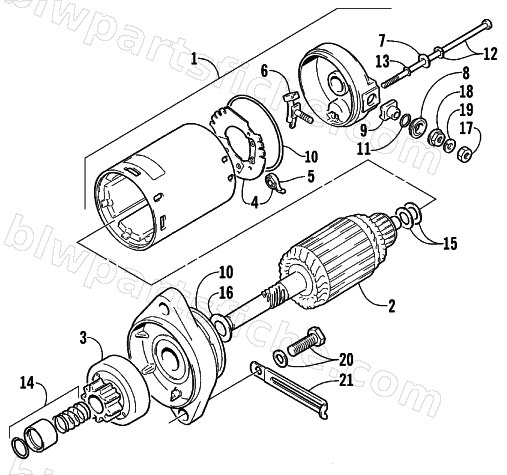

1999 Arctic Cat AC7500GD2E — STARTER MOTOR ASSEMBLY
1999 AC7500GD2E
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-615 | MOTOR ASSY, STARTING | 1 | $1,058.95 | |
| 2 | 0693-616 | ARMATURE, STARTER | 1 | $427.95 | |
| 3 | 0693-617 | PINION ASSY | 1 | $247.95 | |
| 4 | 0693-068 | HOLDER, BRUSH | 1 | $94.95 | |
| 5 | 3004-625 | SPRING | 1 | $4.95 | |
| 6 | 0693-069 | BRUSH ASSY | 1 | $29.95 | |
| 7 | 3004-621 | WASHER | 1 | $4.29 | |
| 8 | 0693-183 | BRUSH (ND) | 1 | $7.95 | |
| 9 | 0693-184 | BUSHING (ND) | 1 | $16.95 | |
| 10 | 3004-618 | O-RING (ND) | 1 | $11.95 | |
| 11 | 3004-619 | O-RING (ND) | 1 | $5.95 | |
| 12 | 0693-487 | SCREW | 1 | $12.95 | |
| 13 | 3004-622 | O-RING | 1 | $6.20 | |
| 14 | 0693-185 | STOPPER SET,PINIOW | 1 | $27.95 | |
| 15 | 0693-488 | SHIM, NO.2 | 1 | $5.95 | |
| 16 | 3004-623 | WASHER (ND) | 1 | $4.95 | |
| 17 | 0693-489 | NUT,6MM | 1 | $3.95 | |
| 18 | 3423-195 | NUT,STARTER MOTOR,6MM | 1 | $2.61 | |
| 19 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 20 | 0693-670 | BOLT,M8X30 | 1 | $3.89 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
