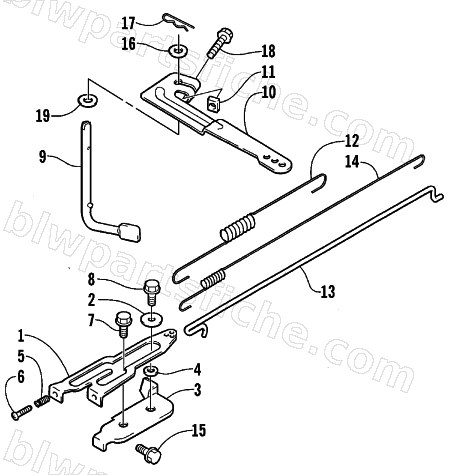

1999 Arctic Cat AC7500GD2E — THROTTLE CONTROL ASSEMBLY
1999 AC7500GD2E
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-147 | HOOK, GOVERNOR SPRING | 1 | $11.95 | |
| 2 | 0691-148 | WASHER, GOVERNOR SPRING HOOK | 1 | $2.89 | |
| 3 | 0693-610 | BRACKET, GOVERNOR SPRING | 1 | $14.95 | |
| 5 | 0693-369 | SPRING, GOV ADJUST SCREW,COMPRESSION,M5 | 1 | $2.39 | |
| 6 | 3004-535 | SCREW, 4X20 | 1 | $1.95 | |
| 7 | 0693-324 | BOLT, GOV SPRING HOOK-M5X12 | 1 | $3.69 | |
| 8 | 0693-386 | SCREW,M6X12 | 1 | $3.69 | |
| 9 | 0693-632 | SHAFT, THROTTLE RETURN | 1 | $27.95 | |
| 10 | 0693-930 | LEVER,THROTTLE CONTROL | 1 | $14.20 | |
| 11 | 0691-017 | NUT,6MM | 1 | $1.78 | |
| 13 | 0693-611 | ROD, CARBURETOR | 1 | $7.95 | |
| 15 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 16 | 0693-556 | WASHER, 8.5X14X1.6 | 1 | $3.69 | |
| 17 | 0691-035 | SNAP,M8 | 1 | $2.19 | |
| 18 | 0693-416 | BOLT,M6X25 | 1 | $2.06 | |
| 19 | 3423-204 | WASHER | 1 | $1.95 |
