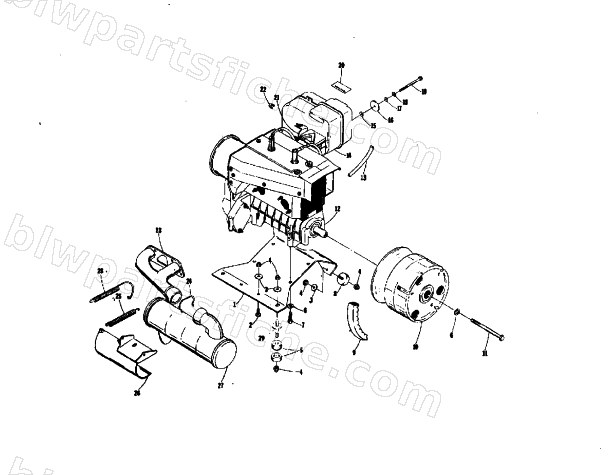

1974 Arctic Cat CHEETAH 340 CDI — ENGINE MOUNTING PARTS
1974 CHEETAH 340 CDI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 6503-025 | R/B 6503-026 | 1 | $66.45 | |
| 0 | 6503-019 | JET .070-HIGH SPEED | 1 | $4.40 | |
| 2 | 8004-192 | SCREW,CAP-HH 3/8-24 X1.00 G5 CAD | 1 | $1.37 | |
| 3 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 4 | 8040-516 | NUT,HEX LOCK-NYL 3/8-24 Z&Y | 1 | $0.68 | |
| 5 | 0108-167 | MOUNT,ISOLATION-FEMALE | 1 | $10.95 | |
| 5 | 0108-168 | MOUNT,ISOLATION-MALE | 1 | $19.25 | |
| 6 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 9 | 0227-019 | BELT, DRIVE | 1 | $62.95 | |
| 11 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 13 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 17 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 18 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 22 | 0123-551 | E-RING,EXTERNAL .250 | 1 | $1.95 | |
| 25 | 0112-232 | SPRING,EXTENSION | 1 | $25.95 | |
| 27 | 0112-272 | MUFFLER | 1 | $704.95 | |
| 28 | 0112-243 | SPRING,RETAINING -MUFFLER | 1 | $13.95 |
