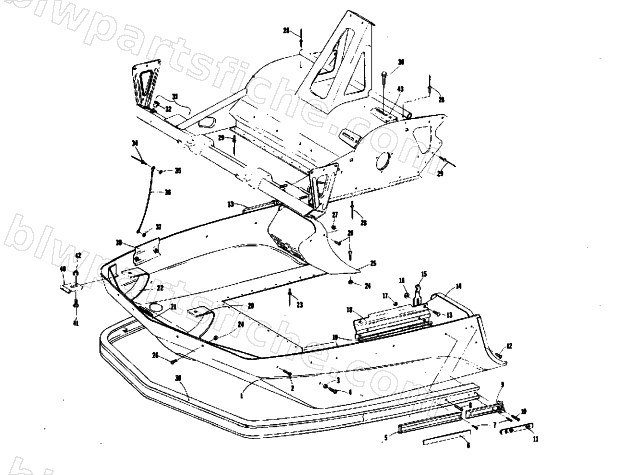

BELLY PAN AND FRONT FRAME
1974 CHEETAH 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-190 | SCREW,MACH FT HD 1/4-20X1-3/8 | 1 | $0.45 | |
| 3 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 4 | 8007-670 | SCREW,MACH-CRTH 5/16-18X.75 G2 Z&Y | 1 | $0.95 | |
| 7 | 0123-465 | SCREW,MTL PN HD 8X5/8 SELF TAP | 1 | $0.35 | |
| 11 | 0116-417 | REFLECTOR,AMBER | 1 | $1.95 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 26 | 8008-579 | SCREW,MACH-SLTH 1/4-20X5/8 Z&Y | 1 | $0.95 | |
| 28 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 32 | 0105-239 | BUSHING FLANGED | 1 | $25.95 | |
| 35 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 36 | 0109-135 | HOOD CABLE - 15" | 1 | $7.95 | |
| 37 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 |
