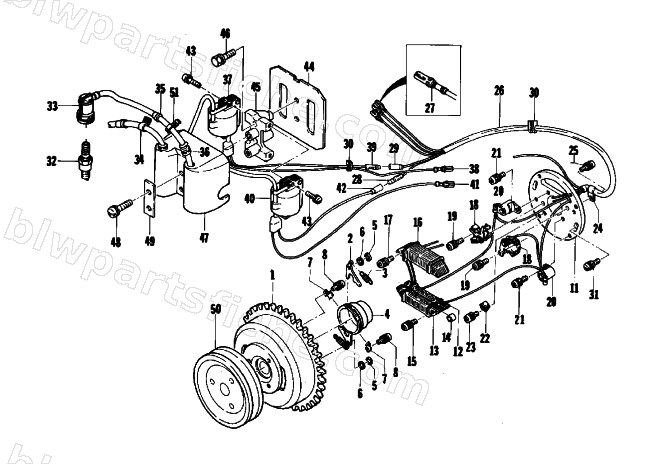

1974 Arctic Cat CHEETAH 440 — MAGNETO
1974 CHEETAH 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 12 | 3000-937 | COIL,EXCITING | 1 | $105.95 | |
| 16 | 3001-338 | COIL,LIGHTING | 1 | $205.95 | |
| 18 | 3000-947 | BREAKER,CONTACT | 1 | $31.95 | |
| 19 | 3000-942 | SCREW,4 X 10 | 1 | $0.15 | |
| 27 | 0109-526 | SOCKET 60619-1 | 1 | $0.85 | |
| 32 | 0217-029 | SPARK PLUG B8ES | 1 | $4.95 | |
| 33 | 3001-431 | CAP,PLUG | 1 | $30.95 |
