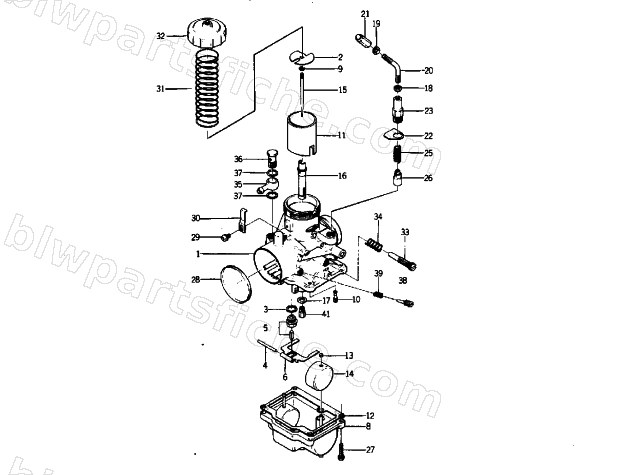

1974 Arctic Cat EL TIGRE 295 — CARBURETOR
1974 EL TIGRE 295
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 6505-045 | PLATE | 1 | $13.73 | |
| 3 | 6505-024 | WASHER,SEAT VALVE | 1 | $1.37 | |
| 4 | 6505-025 | PIN,FLOAT | 1 | $2.88 | |
| 5 | 6505-026 | NEEDLE VALVE 1.5 STEEL | 1 | $49.95 | |
| 6 | 6505-027 | ARM, FLOAT | 1 | $13.73 | |
| 9 | 6505-008 | E-RING | 1 | $3.71 | |
| 10 | 6505-073 | JET PILOT 30 | 1 | $5.09 | |
| 11 | 6505-048 | VALVE,PISTON CA2.0 28&30 | 1 | $83.95 | |
| 12 | 6505-030 | GASKET | 1 | $13.73 | |
| 13 | 6505-010 | CAP | 1 | $1.64 | |
| 14 | 6505-049 | FLOAT | 1 | $29.95 | |
| 15 | 6505-050 | NEEDLE JET 5DP7 | 1 | $32.95 | |
| 16 | 6505-051 | NEEDLE JET P-0 169 | 1 | $32.95 | |
| 17 | 6505-006 | WASHER,JET MAIN | 1 | $1.37 | |
| 18 | 6505-005 | NUT,LOCK | 1 | $1.50 | |
| 19 | 6505-016 | NUT,LOCK | 1 | $0.26 | |
| 20 | 6505-004 | GUIDE CABLE | 1 | $19.25 | |
| 21 | 6505-015 | ADJUSTER CABLE | 1 | $11.95 | |
| 22 | 6505-034 | WASHER,VM30/58A | 1 | $1.78 | |
| 23 | 6505-052 | CAP,PLUNGER | 1 | $10.97 | |
| 25 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 26 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 27 | 6505-014 | SCREW,CROSS W/WASHER | 1 | $1.64 | |
| 29 | 6505-036 | SCREW (W/SPRING WASHER) | 1 | $1.37 | |
| 30 | 6505-186 | PLATE | 1 | $4.95 | |
| 32 | 6505-055 | ARM, FLOAT | 1 | $19.25 | |
| 33 | 6505-022 | SCREW THROTTLE STOP | 1 | $13.73 | |
| 34 | 6505-021 | SPRING | 1 | $3.44 | |
| 35 | 6505-011 | CONNECTION BANJO | 1 | $11.95 | |
| 36 | 6505-012 | BOLT,BANJO | 1 | $13.73 | |
| 37 | 6505-013 | WASHER | 1 | $1.23 | |
| 38 | 6505-019 | SCREW,AIR | 1 | $12.35 | |
| 39 | 6505-020 | SPRING,SCREW AIR | 1 | $3.44 | |
| 41 | 6505-056 | JET MAIN 180 | 1 | $6.75 |
