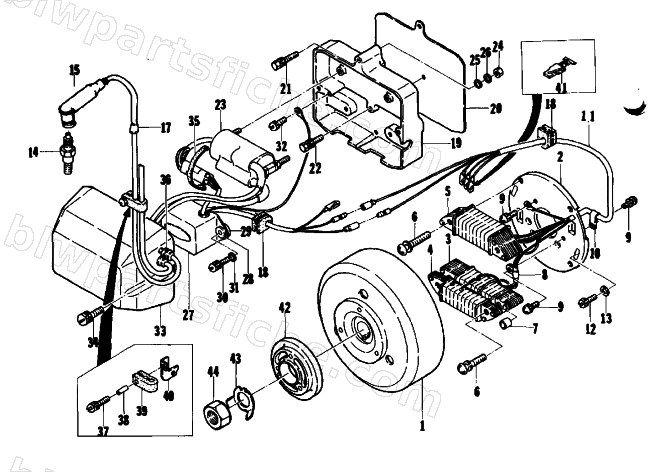

1974 Arctic Cat EL TIGRE 295 — CD IGNITION SYSTEM
1974 EL TIGRE 295
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3001-052 | BASE | 1 | $57.95 | |
| 4 | 3001-054 | COIL SET, PULSING | 1 | $182.95 | |
| 5 | 3001-338 | COIL,LIGHTING | 1 | $205.95 | |
| 14 | 0217-729 | SPARK PLUG, IRIDIUM (BR9EIX) | 1 | $18.95 | |
| 15 | 3001-469 | CAP,PLUG | 1 | $20.95 | |
| 23 | 3001-067 | COIL,IGNITION | 1 | $221.95 | |
| 26 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 28 | 3001-069 | GROMMET | 1 | $0.26 | |
| 31 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 | |
| 43 | 3000-157 | WASHER | 1 | $1.19 | |
| 44 | 3000-258 | NUT,18MM | 1 | $0.15 |
