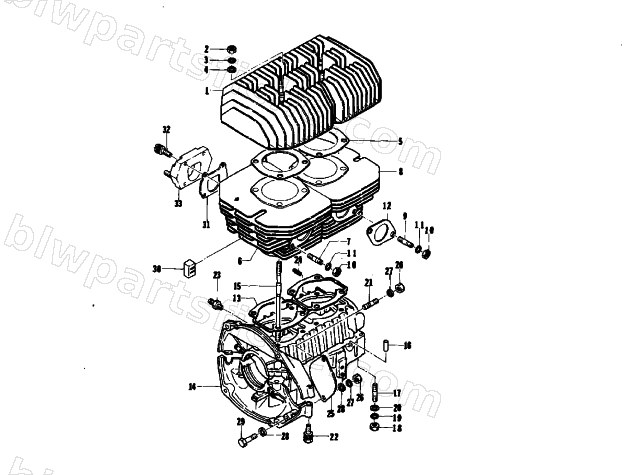

1974 Arctic Cat EL TIGRE 295 — CRANKCASE AND CYLINDER
1974 EL TIGRE 295
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3007-416 | NUT | 1 | $2.75 | |
| 5 | 3000-713 | GASKET,CYL. HEAD | 1 | $20.95 | |
| 7 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 11 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 12 | 3000-141 | GASKET,EXHAUST | 1 | $25.95 | |
| 13 | 3000-714 | GASKET,CYL BASE | 1 | $21.95 | |
| 20 | 3423-204 | WASHER | 1 | $1.95 | |
| 29 | 3004-414 | BOLT, 8X70 | 1 | $3.85 | |
| 31 | 3000-654 | GASKET,INLET | 1 | $0.85 |
