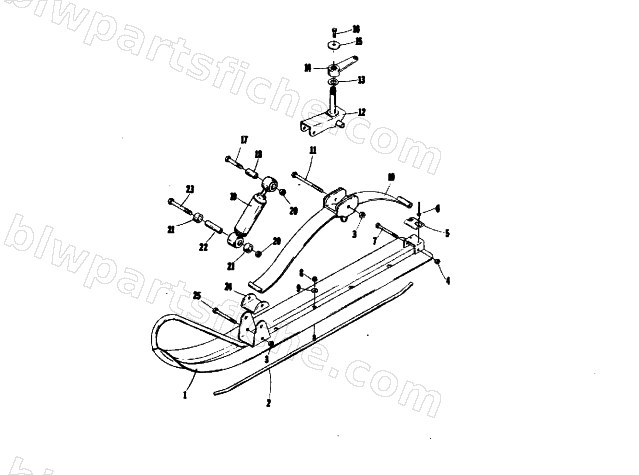

SKI
1974 EL TIGRE 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1703-529 | SKAG-PTD BLK | 1 | $19.25 | |
| 3 | 8040-516 | NUT,HEX LOCK-NYL 3/8-24 Z&Y | 1 | $0.68 | |
| 4 | 8040-456 | NUT,HEX LOCK-NYL 5/16-24 Z&Y | 1 | $0.54 | |
| 6 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 7 | 8004-140 | SCREW,CAP-HH 5/16-24 X2.75 G5 Z&Y | 1 | $0.95 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 11 | 0123-389 | SCREW,CAP HEX 3/8-24X4-1/2 | 1 | $0.25 | |
| 17 | 8004-318 | SCREW,CAP-HH 7/16-20X2.25 G5 Z&Y | 1 | $1.78 | |
| 18 | 0106-195 | SLEEVE,UPPER | 1 | $31.95 | |
| 20 | 8040-576 | NUT,HEX LOCK-NYL 7/16-20 Z&Y | 1 | $0.99 | |
| 21 | 0106-198 | SPACER,NYLON | 1 | $34.95 | |
| 22 | 0106-196 | SLEEVE,LOWER | 1 | $22.95 | |
| 23 | 8004-322 | SCREW,CAP-HH 7/16-20X3.25 G5 Z&Y | 1 | $0.15 |
