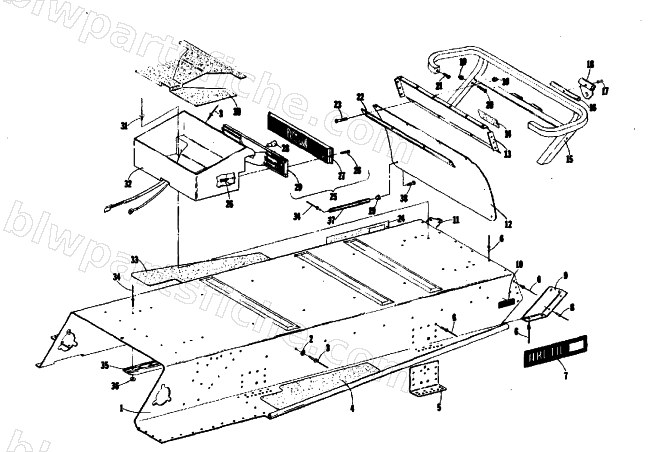

1974 Arctic Cat EL TIGRE 440 — TUNNEL, TOOLBOX AND REAR BUMPER
1974 EL TIGRE 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 17 | 8070-220 | PIN,SPRING-1/8 X 3/4 SLOTTED P&O | 1 | $0.85 | |
| 23 | 0123-145 | SCREW,MACH TR HD 1/4-20X1-3/8 | 1 | $0.39 | |
| 26 | 0123-465 | SCREW,MTL PN HD 8X5/8 SELF TAP | 1 | $0.35 | |
| 28 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 31 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 34 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 36 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 |
