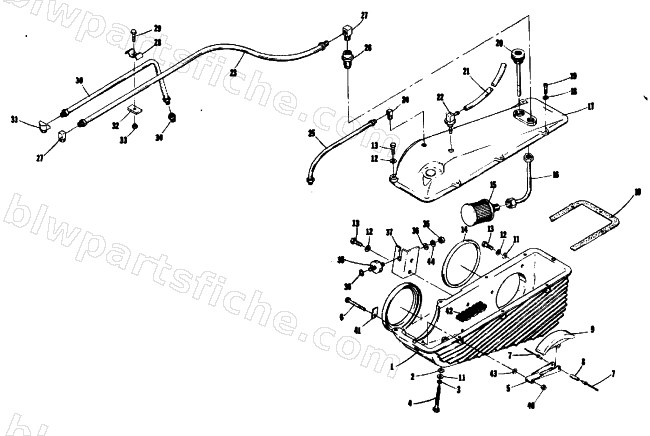

1974 Arctic Cat VIP 440 — DROPCASE AND HYDRAULIC SYSTEM
1974 VIP 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 7 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 9 | 0107-272 | PAD, TIGHTENER | 1 | $19.25 | |
| 10 | 0107-258 | GASKET,COVER-DROPCASE | 1 | $47.95 | |
| 11 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 12 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 18 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 21 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 22 | 0109-284 | ELBOW,GAS TANK | 1 | $27.95 | |
| 25 | 0109-529 | HOSE,HYDRAULIC 13 | 1 | $24.95 | |
| 29 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 33 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 35 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 40 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 42 | 0107-170 | CHAIN,96 PITCH SILENT S37 TNB | 1 | $206.95 | |
| 44 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 |
