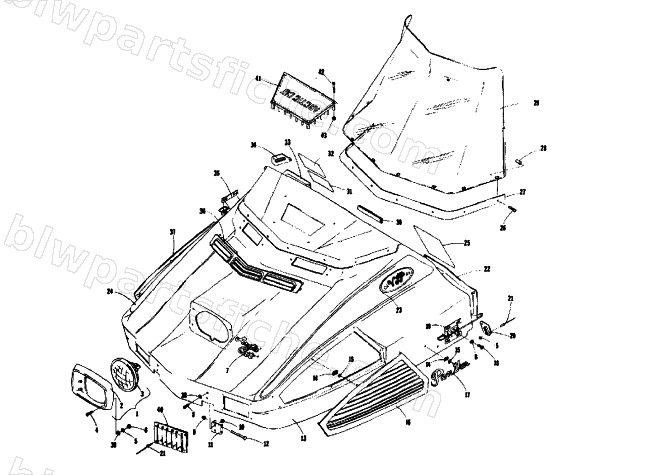

1974 Arctic Cat VIP 440 — HOOD
1974 VIP 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 5 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 6 | 8040-186 | NUT,HEX LOCK-NYL 8-32 Z&Y | 1 | $0.15 | |
| 8 | 8008-609 | SCREW,MACH-SLTH 1/4-20X.625 G2 BE | 1 | $0.95 | |
| 9 | 0123-509 | NUT,PUSH 3/16 | 1 | $0.15 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0123-508 | PIN,HINGE,.188 X 2 | 1 | $0.75 | |
| 14 | 0123-490 | NUT,SPEED 5/32 | 1 | $1.50 | |
| 15 | 0123-254 | WASHER,FLAT 11/64X1/2 RUBB | 1 | $0.12 | |
| 26 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 28 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 38 | 0123-436 | WASHER,RUBBER FACED-1/4 | 1 | $0.95 | |
| 43 | 8040-276 | NUT,HEX LOCK-NYL 10-32 Z&Y | 1 | $0.15 |
