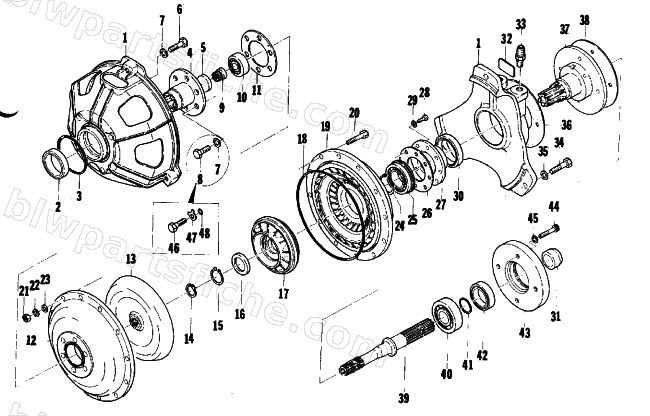

1974 Arctic Cat VIP 440 — TORQUE CONVERTER
1974 VIP 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3001-193 | O-RING | 1 | $5.95 | |
| 20 | 3007-380 | BOLT | 1 | $3.16 | |
| 22 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 24 | 3001-241 | RING,SNAP | 1 | $3.95 | |
| 30 | 3001-222 | SEAL,OIL | 1 | $17.95 | |
| 36 | 3001-191 | GASKET | 1 | $2.95 |
