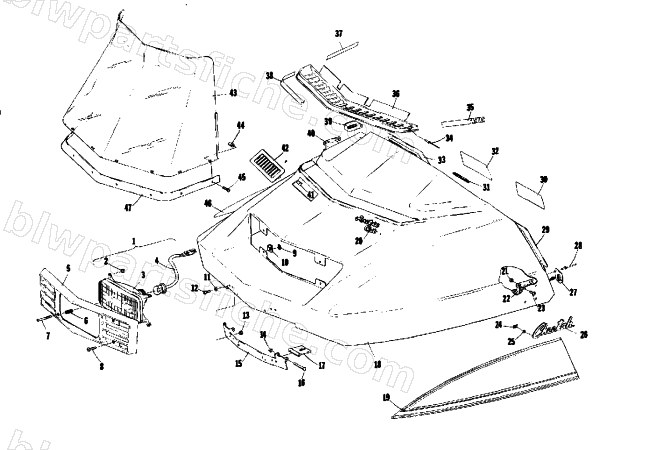

1975 Arctic Cat CHEETAH 440 — HOOD
1975 CHEETAH 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 3 | 0109-617 | HOUSING,HEADLIGHT-RECTANGULAR | 1 | $30.69 | |
| 6 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 8 | 8007-432 | SCREW,MACH-CRTH 10-24X1.0 G2 BE | 1 | $0.45 | |
| 10 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 11 | 0123-436 | WASHER,RUBBER FACED-1/4 | 1 | $0.95 | |
| 12 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0123-509 | NUT,PUSH 3/16 | 1 | $0.15 | |
| 16 | 0123-508 | PIN,HINGE,.188 X 2 | 1 | $0.75 | |
| 21 | 8040-186 | NUT,HEX LOCK-NYL 8-32 Z&Y | 1 | $0.15 | |
| 23 | 8007-337 | SCREW,MACH-CRTH 8-32X.50 G2 BE | 1 | $0.25 | |
| 24 | 0123-490 | NUT,SPEED 5/32 | 1 | $1.50 | |
| 25 | 0123-254 | WASHER,FLAT 11/64X1/2 RUBB | 1 | $0.12 | |
| 29 | 0106-407 | VENT,HOOD-REAR,LEFT | 1 | $46.95 | |
| 33 | 0106-406 | VENT,HOOD-REAR,RIGHT | 1 | $25.79 | |
| 41 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 42 | 0106-626 | VENT,CARBURETOR | 1 | $3.95 | |
| 44 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 45 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 |
