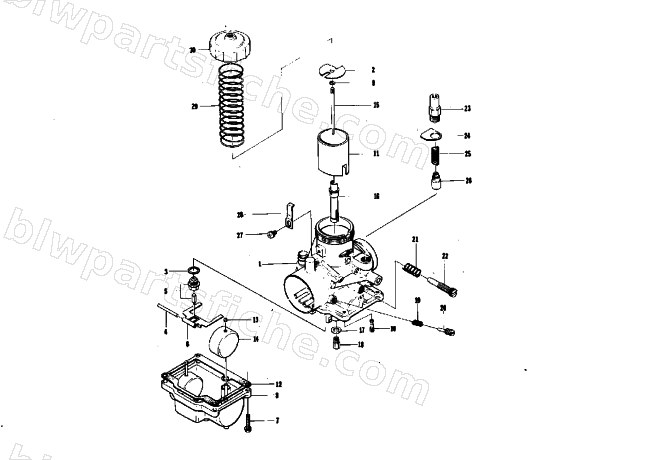

CARBURETOR VM 30-77
1975 CHEETAH (Wankel)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 6505-045 | PLATE | 1 | $13.73 | |
| 3 | 6505-024 | WASHER,SEAT VALVE | 1 | $1.37 | |
| 4 | 6505-153 | PIN,FLOAT ARM | 1 | $3.16 | |
| 5 | 6505-160 | VALVE,NEEDLE | 1 | $50.95 | |
| 6 | 6505-027 | ARM, FLOAT | 1 | $13.73 | |
| 7 | 6505-014 | SCREW,CROSS W/WASHER | 1 | $1.64 | |
| 9 | 6505-008 | E-RING | 1 | $3.71 | |
| 10 | 6505-138 | JET PILOT 20 | 1 | $6.34 | |
| 11 | 6505-048 | VALVE,PISTON CA2.0 28&30 | 1 | $83.95 | |
| 12 | 6505-030 | GASKET | 1 | $13.73 | |
| 13 | 6505-010 | CAP | 1 | $1.64 | |
| 14 | 6505-049 | FLOAT | 1 | $29.95 | |
| 15 | 6505-050 | NEEDLE JET 5DP7 | 1 | $32.95 | |
| 16 | 6505-164 | NEEDLE JET P4-169 | 1 | $35.95 | |
| 17 | 6505-006 | WASHER,JET MAIN | 1 | $1.37 | |
| 18 | 6505-137 | JET MAIN 220 | 1 | $6.75 | |
| 19 | 6505-020 | SPRING,SCREW AIR | 1 | $3.44 | |
| 20 | 6505-019 | SCREW,AIR | 1 | $12.35 | |
| 21 | 6505-021 | SPRING | 1 | $3.44 | |
| 22 | 6505-022 | SCREW THROTTLE STOP | 1 | $13.73 | |
| 23 | 6505-162 | CAP,STARTER PLUNGER | 1 | $20.95 | |
| 24 | 6505-034 | WASHER,VM30/58A | 1 | $1.78 | |
| 25 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 26 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 27 | 6505-036 | SCREW (W/SPRING WASHER) | 1 | $1.37 | |
| 28 | 6505-186 | PLATE | 1 | $4.95 | |
| 30 | 6505-055 | ARM, FLOAT | 1 | $19.25 |
