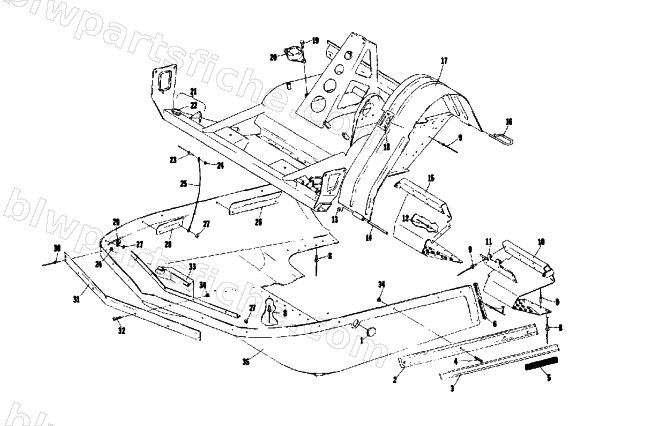

BELLY PAN AND FRONT FRAME
1975 EL TIGRE 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 | |
| 7 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 8 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 9 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 12 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 13 | 0123-551 | E-RING,EXTERNAL .250 | 1 | $1.95 | |
| 16 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 19 | 8012-040 | SCREW,CAP-HHNLP 1/4-20X.75 G5 Z&Y | 1 | $5.65 | |
| 20 | 0109-638 | FUEL PUMP(DF52-21-D) | 1 | $152.95 | |
| 22 | 0105-239 | BUSHING FLANGED | 1 | $25.95 | |
| 24 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 25 | 0109-135 | HOOD CABLE - 15" | 1 | $7.95 | |
| 27 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 30 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 32 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 34 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
