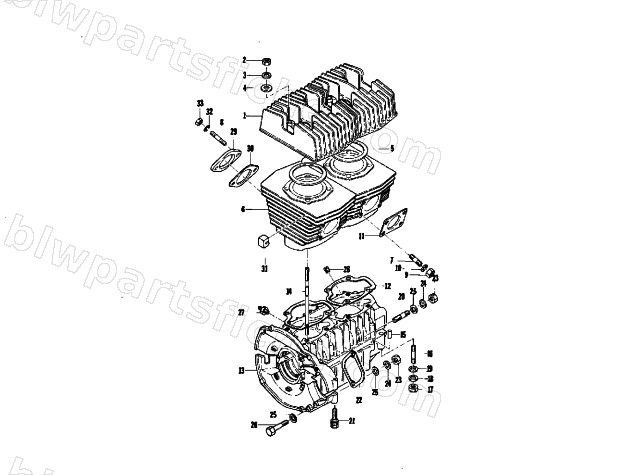

1975 Arctic Cat EL TIGRE 340 — CRANKCASE AND CYLINDER
1975 EL TIGRE 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 5 | 3001-166 | GASKET,HEAD | 1 | $16.49 | |
| 7 | 3001-098 | STUD,6MM-1.0X27.5MM LONG | 1 | $3.95 | |
| 8 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 10 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 12 | 3001-100 | GASKET,CYL BASE | 1 | $5.95 | |
| 17 | 3007-416 | NUT | 1 | $2.75 | |
| 19 | 3423-204 | WASHER | 1 | $1.95 | |
| 20 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 26 | 3004-414 | BOLT, 8X70 | 1 | $3.85 |
