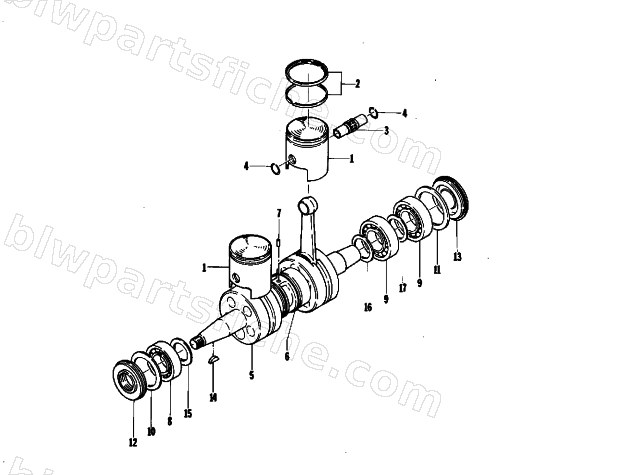

1975 Arctic Cat EL TIGRE 340 — PISTON AND CRANKSHAFT
1975 EL TIGRE 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 3000-151 | CIRCLIP,PISTON PIN | 1 | $2.95 | |
| 8 | 3001-045 | BEARING 6206-9 | 1 | $114.95 | |
| 9 | 3001-121 | BEARING 6207-9C4 | 1 | $97.95 | |
| 10 | 3000-156 | WASHER | 1 | $1.95 | |
| 14 | 3000-267 | KEY | 1 | $5.95 |
