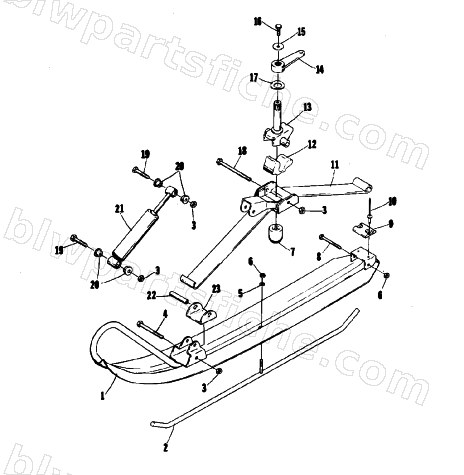

1975 Arctic Cat EL TIGRE 340 — SKI
1975 EL TIGRE 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0103-086 | SKI,WELDMENT | 1 | $62.95 | |
| 2 | 1703-527 | SKAG-PTD BLK | 1 | $14.95 | |
| 3 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 5 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 6 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 8 | 8002-140 | SCREW,CAP-HH 5/16-18 X2.75 G5 Z&Y | 1 | $1.23 | |
| 10 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 12 | 0103-100 | DAMPER, SKI-RUBBER | 1 | $2.05 | |
| 16 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 19 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 23 | 0103-101 | SADDLE,SPRING SLIDE | 1 | $16.95 |
