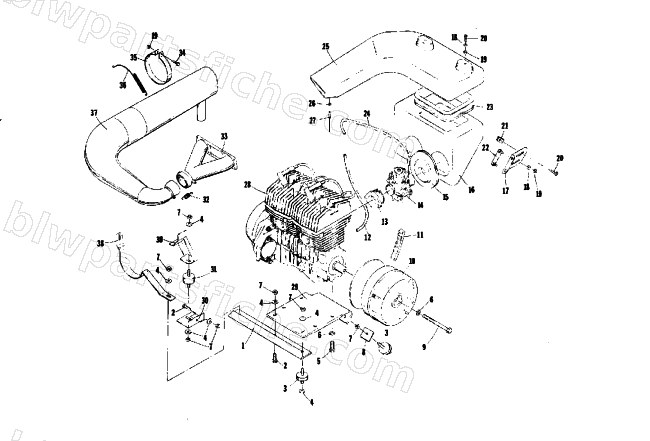

ENGINE MOUNTING PARTS
1975 EL TIGRE 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 4 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 5 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 6 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 7 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 11 | 0227-020 | BELT,DRIVE | 1 | $61.95 | |
| 12 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 13 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 16 | 0109-656 | SILENCER AIR INTAKE | 1 | $206.95 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 19 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 20 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 24 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 26 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 27 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 32 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 33 | 0112-214 | MANIFOLD ASSY,399/440 | 1 | $191.95 | |
| 34 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 36 | 0112-243 | SPRING,RETAINING -MUFFLER | 1 | $13.95 | |
| 39 | 0112-210 | BRKT,MUFFLER | 1 | $62.95 |
