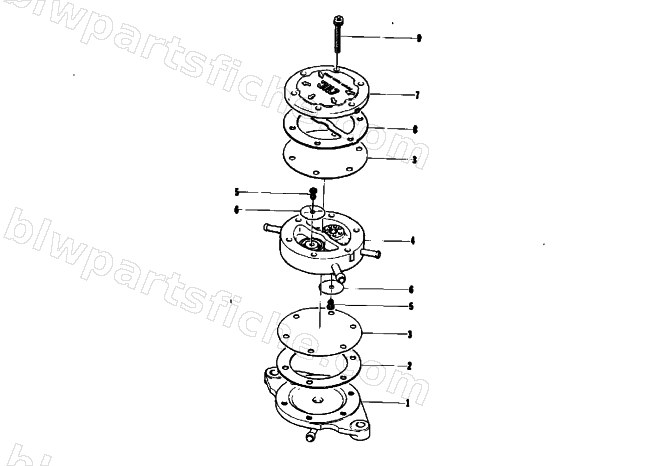

1975 Arctic Cat EL TIGRE 440 — FUEL PUMP
1975 EL TIGRE 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0109-638 | FUEL PUMP(DF52-21-D) | 1 | $152.95 | |
| 2 | 6506-059 | SPRING | 1 | $17.95 | |
| 5 | 6505-139 | GROMMET,FUEL PUMP | 1 | $6.34 | |
| 6 | 6505-140 | VALVE,FUEL PUMP | 1 | $3.44 | |
| 8 | 6506-248 | PACKING | 1 | $6.89 |
