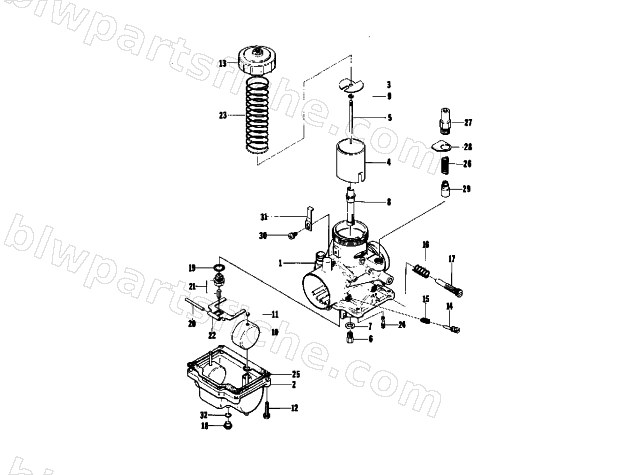

1975 Arctic Cat EL TIGRE' Z 250 — CARBURETOR VW28-132
1975 EL TIGRE' Z 250
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 6505-189 | BODY ASSY FLOAT CHAMBER | 1 | $70.95 | |
| 3 | 6505-045 | PLATE | 1 | $13.73 | |
| 4 | 6505-048 | VALVE,PISTON CA2.0 28&30 | 1 | $83.95 | |
| 5 | 6505-050 | NEEDLE JET 5DP7 | 1 | $32.95 | |
| 6 | 6505-067 | JET MAIN 230 | 1 | $6.75 | |
| 9 | 6505-008 | E-RING | 1 | $3.71 | |
| 10 | 6505-049 | FLOAT | 1 | $29.95 | |
| 11 | 6505-010 | CAP | 1 | $1.64 | |
| 12 | 6505-014 | SCREW,CROSS W/WASHER | 1 | $1.64 | |
| 13 | 6505-055 | ARM, FLOAT | 1 | $19.25 | |
| 14 | 6505-019 | SCREW,AIR | 1 | $12.35 | |
| 15 | 6505-020 | SPRING,SCREW AIR | 1 | $3.44 | |
| 16 | 6505-021 | SPRING | 1 | $3.44 | |
| 17 | 6505-101 | SCREW,THROTTLE STOP | 1 | $6.89 | |
| 18 | 6505-184 | SCREW, DRAIN | 1 | $13.73 | |
| 19 | 6505-024 | WASHER,SEAT VALVE | 1 | $1.37 | |
| 20 | 6505-153 | PIN,FLOAT ARM | 1 | $3.16 | |
| 21 | 6505-160 | VALVE,NEEDLE | 1 | $50.95 | |
| 22 | 6505-027 | ARM, FLOAT | 1 | $13.73 | |
| 24 | 6505-029 | PILOT JET 35 | 1 | $6.75 | |
| 25 | 6505-030 | GASKET | 1 | $13.73 | |
| 26 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 27 | 6505-162 | CAP,STARTER PLUNGER | 1 | $20.95 | |
| 28 | 6505-034 | WASHER,VM30/58A | 1 | $1.78 | |
| 29 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 30 | 6505-036 | SCREW (W/SPRING WASHER) | 1 | $1.37 | |
| 31 | 6505-186 | PLATE | 1 | $4.95 | |
| 32 | 6505-185 | O-RING | 1 | $3.99 |
