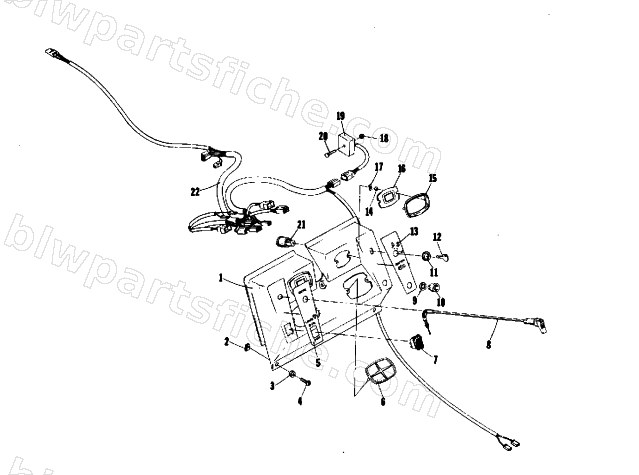

1975 Arctic Cat JAG 340 — CONSOLE AND WIRING
1975 JAG 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 4 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 7 | 0109-449 | SWITCH,ROCKER-ON/OFF | 1 | $74.95 | |
| 8 | 0687-003 | CABLE,CHOKE-SINGLE | 1 | $68.95 | |
| 9 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 10 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 12 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 12 | 0109-354 | KEY IGN SWITCH C | 1 | $4.26 | |
| 12 | 0109-355 | KEY IGN SWITCH D.. | 1 | $16.49 | |
| 12 | 0109-356 | KEY IGN SWITCH E | 1 | $14.95 | |
| 14 | 0123-254 | WASHER,FLAT 11/64X1/2 RUBB | 1 | $0.12 | |
| 17 | 0123-490 | NUT,SPEED 5/32 | 1 | $1.50 | |
| 18 | 0123-597 | NUT,LOCK-W/WASHER 1/4-20 | 1 | $0.36 | |
| 19 | 0232-014 | REGULATOR,VOLTAGE | 1 | $75.95 | |
| 21 | 0609-278 | SWITCH, IGN.-E.S.-N.O. | 1 | $71.95 |
