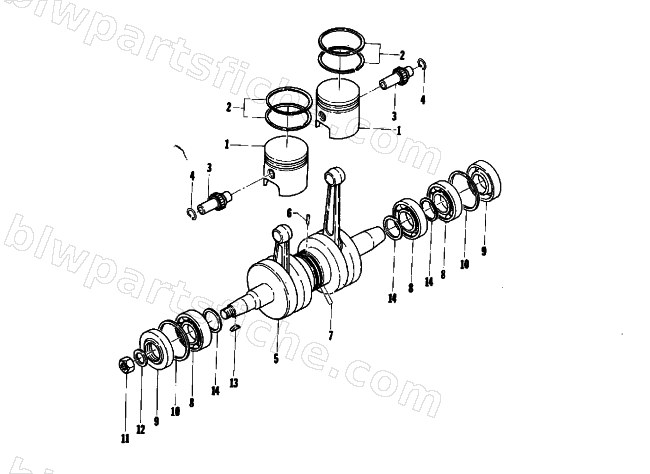

1975 Arctic Cat JAG 340 — PISTON AND CRANKSHAFT

1975 JAG 340

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3000-218	PISTON	1	$157.95
4	3000-151	CIRCLIP,PISTON PIN	1	$2.95
8	3001-045	BEARING 6206-9	1	$114.95
10	3000-156	WASHER	1	$1.95
11	3000-258	NUT,18MM	1	$0.15
13	3000-267	KEY	1	$5.95
