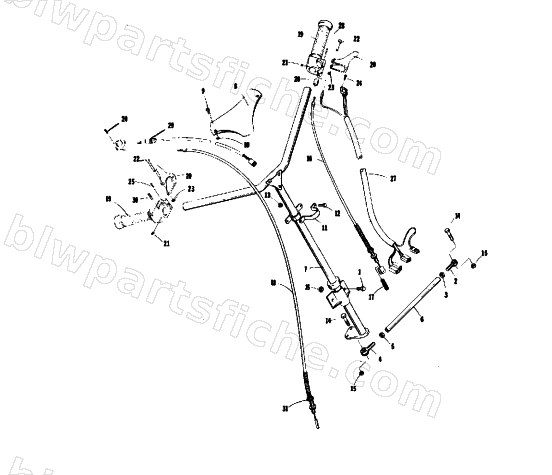

1975 Arctic Cat PANTERA 440 — STEERING
1975 PANTERA 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0105-232 | TIE ROD W/END 9.75 | 1 | $49.95 | |
| 1 | 8004-192 | SCREW,CAP-HH 3/8-24 X1.00 G5 CAD | 1 | $1.37 | |
| 2 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 2 | 0105-234 | BALL JOINT,TIE ROD,RH | 1 | $52.95 | |
| 3 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 4 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 0105-235 | BALL JOINT TIE ROD 3/8-24 LH | 1 | $116.95 | |
| 6 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 7 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 10 | 0117-867 | CLEVIS | 1 | $37.95 | |
| 10 | 0123-490 | NUT,SPEED 5/32 | 1 | $1.50 | |
| 11 | 0123-407 | SPRING,COMPRESSION 5/16IDX3 | 1 | $0.45 | |
| 12 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 13 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 15 | 0110-777 | POST,ASSY,STEERING | 1 | $157.95 | |
| 15 | 8040-516 | NUT,HEX LOCK-NYL 3/8-24 Z&Y | 1 | $0.68 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 0187-006 | CABLE,BRAKE | 1 | $147.95 | |
| 18 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 18 | 0187-007 | CABLE,THROTTLE | 1 | $45.95 | |
| 20 | 0109-609 | LEVER,CONTROL | 1 | $20.63 | |
| 21 | 1623-828 | PIN, 1/4D X 1 5/8 | 1 | $12.35 | |
| 22 | 0109-610 | HANDLE CONTROL-PARK BRAKE | 1 | $27.95 | |
| 23 | 8070-286 | PIN,SPRING-5/32 X 1-1/4 SLOTTED P&O | 1 | $1.92 | |
| 24 | 0109-608 | SPRING,PARKING BRAKE | 1 | $3.30 | |
| 26 | 0106-342 | INSERT,THRTLE & BRAKE CONTROL | 1 | $32.95 | |
| 31 | 0187-005 | CABLE,THROTTLE | 1 | $90.95 | |
| 34 | 0109-487 | LEVER,THROTTLE | 1 | $26.95 | |
| 36 | 0109-485 | CAP,THROTTLE CONTROL | 1 | $26.95 | |
| 38 | 8001-039 | SCREW,CAP-HH, 1/4-20X.625 G2 Z&Y | 1 | $0.15 | |
| 40 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 42 | 0109-636 | SLEEVE STOP SWITCH | 1 | $5.95 | |
| 43 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
