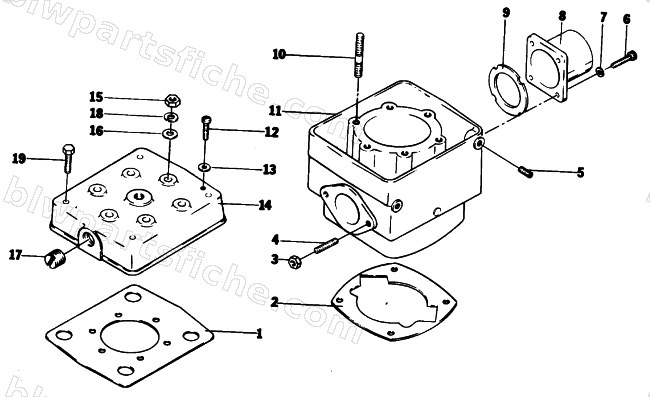

1976 Arctic Cat ARCTIC Z 250 — CYLINDER
1976 ARCTIC Z 250
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 5 | 8080-245 | SCREW,SET-HS 5/16-18 X 3/8 | 1 | $0.15 | |
| 6 | 8005-522 | SCREW, CAP-HSH 1/4-20X1.0 Z&B | 1 | $1.37 | |
| 7 | 8051-213 | R/B 8051-212 | 1 | $0.35 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 18 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 19 | 8001-127 | SCREW,CAP-HH 5/16-18X.50 G2 Z&Y | 1 | $0.75 |
