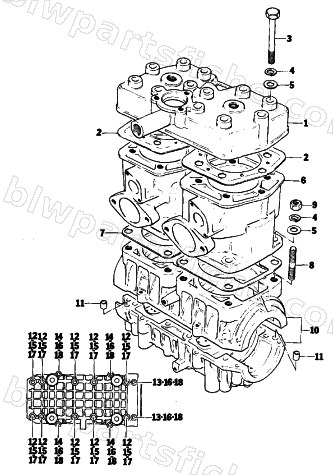

1976 Arctic Cat ARCTIC Z 440 — CRANKCASE AND CYLINDER
1976 ARCTIC Z 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3002-222 | GASKET,CYL HEAD | 1 | $61.95 | |
| 4 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 5 | 3007-410 | WASHER | 1 | $2.75 | |
| 9 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 11 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 13 | 3002-963 | BOLT,HEX M6X70 | 1 | $3.95 | |
| 15 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 16 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 17 | 3423-204 | WASHER | 1 | $1.95 |
