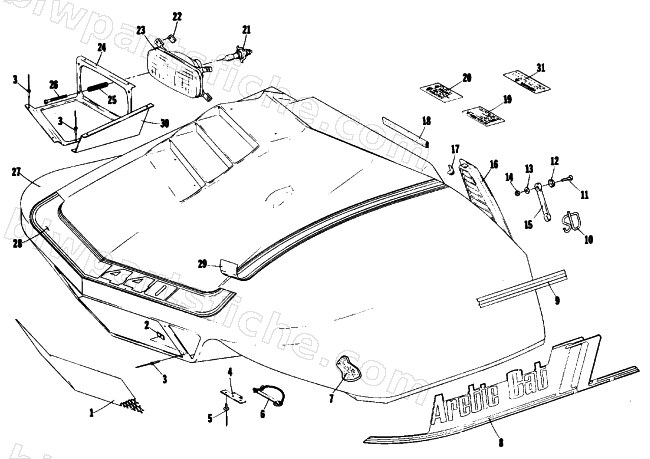

1976 Arctic Cat ARCTIC Z 440 — HOOD
1976 ARCTIC Z 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 5 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 7 | 0717-078 | FOAM,HOOD-CONVOLUTED 27 X 3'X.75 | 1 | $24.77 | |
| 9 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 | |
| 10 | 0116-376 | LATCH,HOOD | 1 | $31.95 | |
| 12 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0116-827 | STRAP,LATCH-HOOD | 1 | $14.95 | |
| 17 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 21 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 22 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 25 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 |
