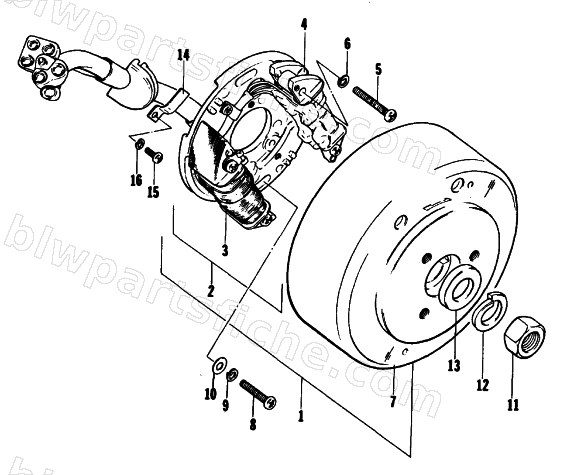

1976 Arctic Cat ARCTIC Z 440 — MAGNETO
1976 ARCTIC Z 440
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 5 |
3007-843 |
SCREW,M5X35 |
1 |
$2.75 |
|
| 6 |
3007-628 |
WASHER, LOCK-5MM |
1 |
$3.30 |
|
| 7 |
3002-650 |
ROTOR ASSY |
1 |
$386.95 |
|
| 10 |
3000-260 |
WASHER,5MM |
1 |
$0.26 |
|
| 11 |
3007-556 |
NUT |
1 |
$3.95 |
|
| 12 |
3007-427 |
LOCK WASHER |
1 |
$4.40 |
|
| 13 |
3005-175 |
WASHER, 14.5X28X5 |
1 |
$3.16 |
|
| 16 |
3007-847 |
WASHER,LOCK-4MM |
1 |
$3.16 |
|
